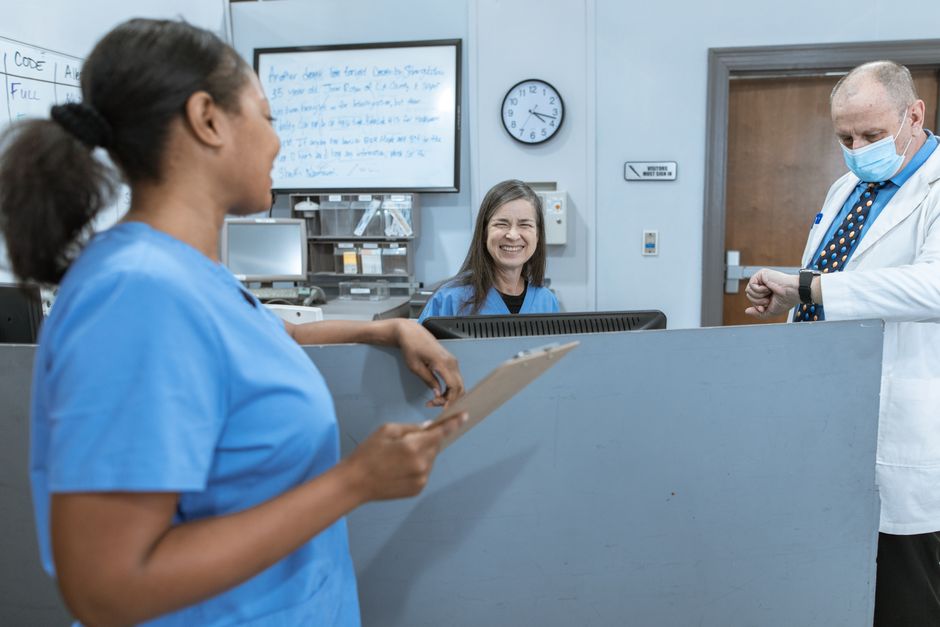

A nurse station is not a curved counter placed in a corridor. It is a high-use clinical workstation where documentation, communication, surveillance, equipment, storage, cleaning, and maintenance converge. When these interfaces are designed in isolation, the result is a fixed piece of joinery that is difficult to clean, expensive to modify, and incompatible with evolving technology. This article redefines modular nurse station counter design as a clinical interface that must integrate workflow, ergonomics, infection control, and MEP requirements. The goal is to provide evaluation criteria for specifiers, facility managers, and EPC firms selecting a system that can adapt over time, not just a cabinet that looks good in a rendering. For a broader framework, see our turnkey hospital furniture solutions guide.

1. Modular Structure and Cable/Device Integration

A modular system breaks the nurse station into manageable components: structural base modules, worktop modules, service spine, access panels, equipment supports, and storage modules. Each module serves a distinct function and can be replaced or upgraded independently. The structural base consists of steel or panel feet with adjustable glides, wall/floor anchors, and anti-tilt brackets. Worktop modules come in seated, standing, accessible, and corner configurations, typically using 18mm E0-grade MDF with 0.6mm ABS edge banding.

Learn more about our projects.

The service spine is the core of integration: a continuous cavity behind the front panel that hosts power, data, phone, printer, scanner, and nurse call interfaces. Integrated cable management nurse desk systems require a device inventory (ports, wattage, network type, UPS, cooling needs) before routing. Local electrical and IT codes dictate separation, grounding, firestopping, and minimum spacing between mains and low-voltage cables. Access panels must be labeled, ventilated, and tool-required to prevent unauthorized tampering. Cable pathways must allow for bending radius, 30% spare capacity, and future re-routing. Equipment supports—monitor arms, CPU trays, printer shelves—must be rated for dynamic loads and allow height/tilt adjustment. Storage modules for meds, files, and supplies need lockable compartments, cleanable surfaces, and restocking access from the rear.

A real-world risk: fixed joinery often lacks service access, forcing maintenance crews to dismantle the entire counter to replace a single socket. Modular nurse station counter design avoids this by making each module separately detachable. This reduces downtime and renovation costs. Additionally, BIM coordination before fabrication can flag clashes with floor boxes, wall outlets, or sprinkler heads.

2. Ergonomics: From Fixed Height to Task and Population Analysis

There is no universal “golden height” for all nurse stations. A 2023 systematic review and meta-analysis of 42 studies (n=36,934 nurses) estimated the annual prevalence of work-related musculoskeletal disorders (WMSDs) at 77.2%, with lower back (59.5%), neck (53.0%), and shoulders (46.8%) most affected. While patient handling and shift load are major contributors, workstation design plays a role. The ergonomic approach is to match the workstation to the task mix: seated documentation, standing communication, rapid response, multi-screen monitoring, and accessible patient interaction.

Ergonomic nurse station design begins with a task analysis. For seated work, the worktop height should be around 720–760 mm as a starting point, but must be validated with representative users using adjustable chairs and keyboard trays. Standing work surfaces for quick charting or patient interaction are typically 900–1000 mm. Monitors should be placed directly in front of the user, with the top of the screen at or slightly below eye level, and a viewing distance of at least 500 mm. Knee and leg clearance must be free of drawers, CPUs, or cross-braces, and should accommodate wheelchair access.

Adjustability is key: sit-stand workstations or multiple work zones at different heights allow nurses to vary posture. However, full-height adjustable counters are expensive and introduce mechanical failure points. A pragmatic solution is to design separate seated and standing zones, each optimized for its primary task. The design should be mocked up at 1:1 scale with nurses of different statures to test reach, visibility, and clearance before finalizing dimensions.

3. Infection Control and Material Compatibility

Infection-conscious furniture design is less about marketing an antibacterial surface and more about ensuring the complete assembly can be cleaned repeatedly with the facility’s actual disinfectants. The CDC emphasizes that finishes, furniture, and equipment must be cleanable and compatible with EPA-registered hospital disinfectants. Infection control hospital furniture requirements extend beyond the worktop: edges, seams, sealants, hardware, and access panels all contact cleaning agents and must not degrade, discolor, or delaminate.

Material selection should cover the entire assembly: core (moisture-resistant MDF or phenolic), edge banding (thick ABS or stainless steel), adhesives (water-resistant, low-VOC), sealants (sanitary-grade silicone), and high-touch hardware (antimicrobial-coated or stainless steel). The design should minimize horizontal surfaces, crevices, and liquid traps. Rounded edges and seamless transitions prevent soil accumulation. Cable openings must have grommets or brush plates to block debris entry.

A common mistake is to specify an “antibacterial” worktop but use untreated chipboard for the base panels. Modular nurse station counter design must address the entire envelope. Suppliers should provide material compatibility test data for the disinfectant brands and concentrations used in the facility. The infection control team and environmental services staff should review material samples and written maintenance protocols before procurement. Remember: no surface can replace proper cleaning protocols.

4. Department-Specific Customization Matrix

Different clinical areas impose distinct demands. The table below summarizes key priorities for five common settings.

Hospital reception desk customization for lobbies involves different workflows than a unit station. Lobby counters handle patient check-in, wayfinding, and queuing, while unit stations focus on clinical documentation and monitoring. Mixing these functions can lead to inefficiency. A modular approach allows the same base system to be reconfigured with different worktop heights, storage modules, and service spine layouts for each department.

5. Turnkey Detailing and On-Site Implementation

The value of modular nurse station counter design is only realized if the system arrives on time, fits the space, and integrates with building systems. This requires a structured workflow:

1. Clinical Brief: Define bed count, shift size, tasks, equipment, storage, privacy, and infection control requirements.
2. Site & MEP Survey: Measure actual as-built dimensions, locate floor boxes, network drops, plumbing, fire protection, and equipment interfaces.
3. Interface Matrix: Clarify responsibility boundaries among building, MEP, IT, furniture, equipment, and installation teams.
4. Shop Drawings/BIM Coordination: Produce dimensioned drawings with module numbers, cutouts, service cavities, fastening methods, and clash detection.
5. Mock-Up Validation: Build a full-scale or critical-joint mock-up reviewed by nurses, infection control, IT, facilities, and design team.
6. Preassembly & QC: Factory-assemble and test modules for fit, function, and finish; document material batches and hardware settings.
7. Sequenced Packing: Mark packages by floor, zone, module, and installation sequence to reduce on-site sorting.
8. Installation & Handover: Re-measure on-site, level and anchor modules, install access panels, complete defect list, and provide maintenance documentation.

These steps reduce avoidable rework. No system can guarantee zero field issues, but a rigorous process minimizes them. The procurement team should request evidence of previous project shop drawings, mock-up protocols, and QC records.

When selecting a partner for modular nurse station counter design, evaluate their ability to handle the full cycle. At ZHOBAI Medical Furniture, our engineering team follows the above workflow for every project, ensuring the counter arrives as a coordinated system rather than a box of parts. We recommend sending ward plans, equipment lists, and MEP points early in the design phase for a coordinated review.
